e-breathe Smartblower

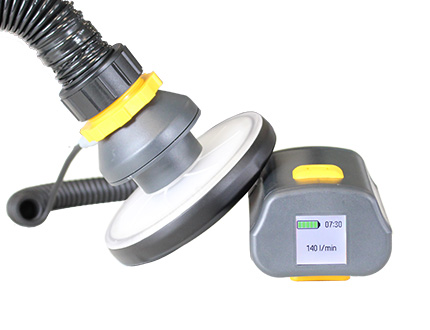

The small and lightweight Smartblower respiratory protection system offers maximum flexibility and safety. The system has a modular construction and consists of a Battery/Control Unit (SVE), a connecting cable and the blower unit. The system can be extended according to specific requirements. The unit is suitable for pressurised applications and supplies the connected head piece with filtered breathing air. The blower is controlled by a 350g Battery/Control Unit and delivers an air volume from 140l/min up to 160l/min.

e-breathe Smartblower Full Face Mask-System

The Motor Unit can be easily screwed frontally between a half mask or a full face mask and a filter into the screw thread of the mask. The lightweight Battery /Control Unit can be attached to the hip belt. The blower serves as a breathing support. It extends the application time and results in a work facilitation for the user.

• Suitable for all applications, which require a protection with a full face mask
• Breathing assistance for the user & extension of application time
• Cost-effective due to one filter mode & e-breathe filter system
• Work facilitation for the user

Description

Automatic airflow readjustment
The integrated software controls and monitors the airflow to ensure that the user is supplied with the required airflow rate even in the event of a more and more saturated filter or decreasing battery power. If the system is no longer able to ensure the correct airflow rate the system automatically gives the user an optical and audible warning.

Ultralight
With only 435g in weight (Motor Unit + Battery Unit) the system is ultra-light. The blower motor impresses with its compact size and its weight of only 85g. Thanks to its very low weight the motor unit can directly be connected to a full face mask without a breathing hose. The lightweight and ergonomical design ensures an optimal weight balance of the unit and guarantees maximum comfort even during exhausting activities or in long-term use.

Wide range of components for every application
To complete the system, e-breathe offers a wide range of compatible face pieces, such as half and full face masks or hoods, filters and accessories. The system provides a large number of options and accessories to best fit your application.

Exchangeable Lithium-Ion Battery
The Battery/Control Unit consists of a Lithium-Ion Battery with a battery run from up to 8h. A second Battery/Control Unit can be used as an exchangeable battery and allows the user to work without a break. The simple and efficient quick charge system allows rapid charging (1 hour for 80% and 3 hours for the whole battery).

Protection Class IP67
The Battery/Control Unit and the Motor Unit feature heavy-duty design and achieve a high Protection Class IP67 (protection while temporarily submerged) in closed condition.

Technical Specifications
Country of Production: Germany Germany
Approvals: Smartblower Hood-Mode
CE certified according to EN 12941 (TH3))
Smartblower Full Mask Mode->
CE certified according to EN 12942 (TM3)
Airflow: not adjustable on the device
140 – 160 l/min
not adjustable on the device
140 l/min
Airflow Warning: < 135 l/min Nein
Battery Warning: < 15 min remaining runtime < 15 min remaining runtime
Battery: Lithium-Ion Battery: 11,25V / 2,95Ah Lithium-Ion Battery: 11,25V / 2,95Ah
Operating Time: approx. 6-8 hours approx. 6-8 hours
Battery Recharging Time: 1 hour = 80% quick charge function
3 hours = 100%
1 hour = 80% quick charge function
3 hours = 100%
SVE: SVE Hood Mode SVE Full Mask Mode
Temperature Range: -0°C bis +40°C <70% RH -0°C bis +40°C <70% RH
Weight: ca. 470g (without belt / without filter) ca. 470g (without belt / without filter)
Alarm System: Optical alarm (displayed on display)
Audible alarm (≥ 75 dB )
Optical alarm (displayed on display)
Audible alarm (≥ 75 dB )
Downloads
Brochure e-Flow Instruction Manual e-Flow Datasheet e-Flow

Starter-Packs

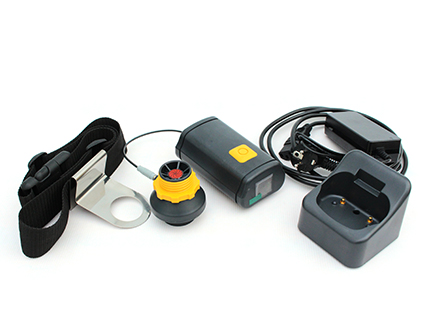

Articlename:
e-breathe Smartblower One Filter Mode

Art. No. 322002100

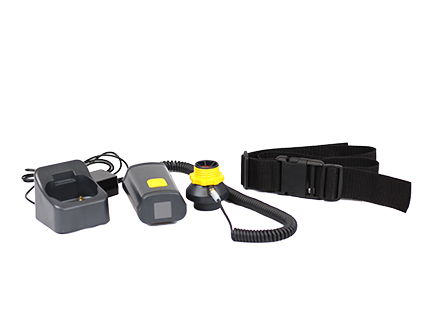

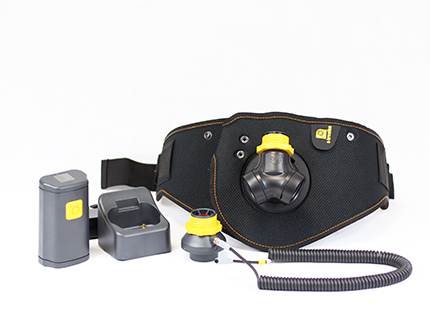

Articlename:
e-breathe Smartblower
Zweifilter-System

Art. No. 322002201

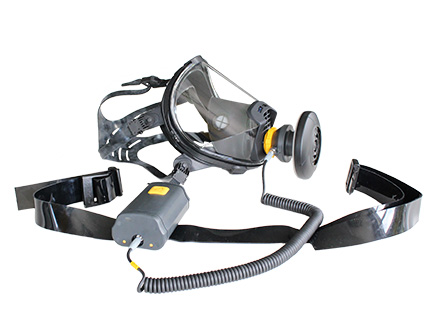

Articlename:
e-breathe Smartblower
Vollmasken-System

Art. No. 322002200

Accessory & Spare Parts

Motor

The radial motor delivers an air volume of up to 180l/min. The blower motor impresses with its compact size and its weight of only 85g.

• IP-67 watertight
• connection DIN round, threaded filter

Art. No. 322002102

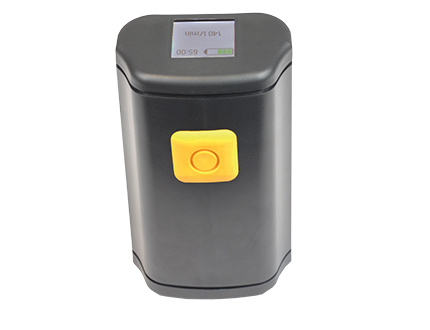

SVE

The blower is controlled by a 350g Battery/Control Unit. All important functions may be accessed via one simple menu.

• optical and audible warning
• Displays: usage time, air volume, filter status, battery

SVE One Filter Mode:          Art. No. 322002103
SVE Full Face Mask Mode: Art. No. 322002113

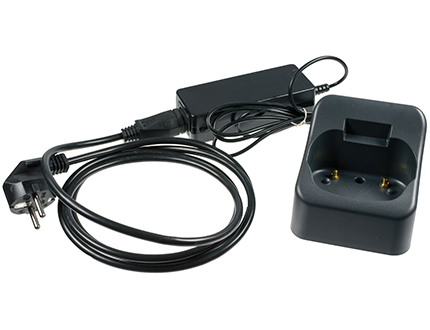

SVE Charging station

Charging station for the SVE. Charges the SVE to 80% in one hour and to 100% in 3 hours.

Art. No. 322002101

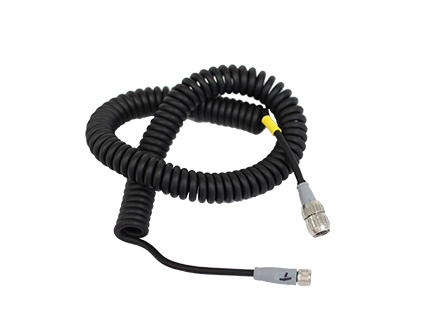

Spiral SVE cable 2.0 DV

Connection cable for motor unit and SVE.

Art. No. 322002137

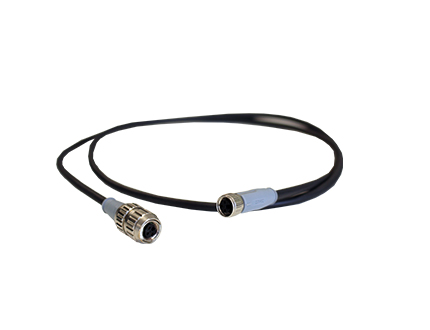

Long SVE cable 2.0 DV

Connecting cable for motor unit and SVE.

Art. No. 322002139

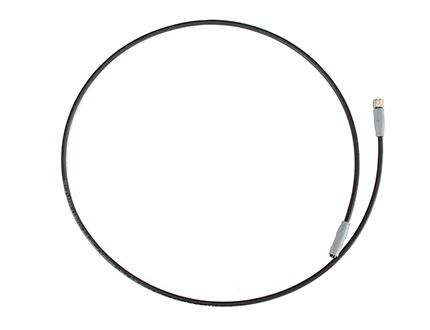

Short SVE cable 1.0

Connecting cable for motor unit and SVE.

Art. No. 322002104

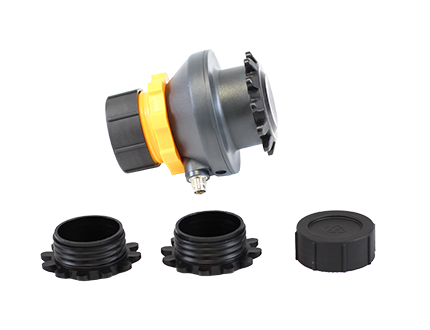

Decontamination Set

Art. No. 500510046

Smartblower Belt

Adjustable nylon belt with plastic fastener.

Art. No. 322002105

Belt Dekon

Adjustable PVC belt with plastic fastener.

Art. No. 302062996

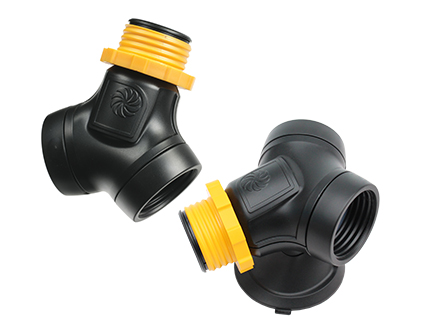

Y-Connector

Y-Con. – Art. No. 322003000
Y-Con. – Art. No. 322003001

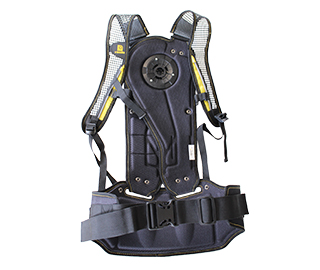

e-breathe Smartbelt

You can find the Smartbelt on the separate page.

Belt Clip

The belt clip enables free positioning of the blower on the belt. This ensures freedom of movement and high wearer comfort. The halter can easily be removed from the belt for cleaning.

Art. No. 322004021

Storage Case

Art. No. 119458616

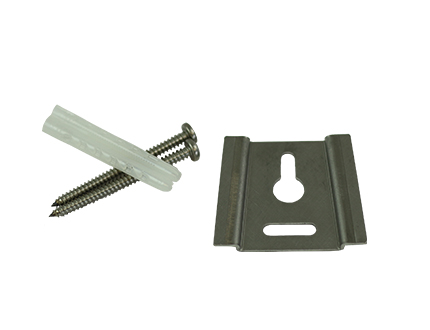

e-breathe Wall Mount

Wall Mount for Charging Station.

Art. No. 322002105
