e-breathe e-Flow Powered Air Respirator System

THE ALL-IN-ONE POWERED AIR PURIFYING RESPIRATOR

Robust and reliable protective equipment is essential in demanding working environments. The e-breathe e-Flow offers uncompromising respiratory protection against particles, gases and vapours – combined with high wearing comfort, no breathing resistance and no restrictions.

The compact, lightweight respirator impresses with its exceptional robustness, chemical resistance and high protection class. It has been specially developed for demanding applications and long wearing times. It offers a high level of comfort and relieves the user thanks to the battery-powered blower with continuous air flow: there is no breathing resistance, heat build-up in the headpiece is avoided, fogging of the visor is reliably prevented and the resulting overpressure prevents the ingress of harmful substances.

The air flow can be individually regulated via three power levels and also supports work in extreme climatic conditions at high temperatures. The ergonomic, weight-reduced design with slim housing allows maximum freedom of movement even in confined spaces. Various belt options and shoulder harness systems ensure a comfortable fit and balanced weight distribution, allowing the system to be worn either on the hip or on the back.

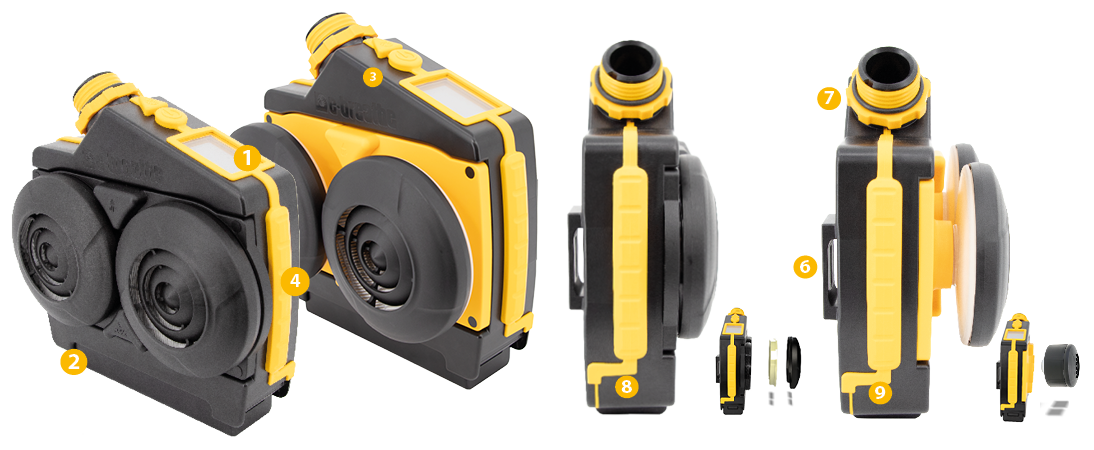

Available as an e-Flow with Filter box and EN148-1 Round thread connection (9) or as a PAD Box system with sustainable filter pads (8).

Accessoires / Spare Parts

Product Details

1) Colour display
The colour display shows all relevant information such as: Volume flow, battery charge level, filter status, head section mode and remaining fan runtime in hours/minutes.

2) Replaceable lithium-ion battery
Equipped with a powerful, replaceable lithium-ion battery with fast-charging function and an operating time of 8 to 18 hours – for a long service life

3) Intuitive operation
Intuitive operation: Two large buttons enable simple and clear user guidance

4) Robust, chemical-resistant, ip65 protection
The blower has a robust design, is robust and chemical-resistant and protected against dust and water jets in accordance with protection class IP65. Rubber protectors reliably protect the device in harsh environments.

5) High safety thanks to the integrated Alarmsystem and Self-test
The integrated self-test performs a check of all functions when the appliance is started. The intelligent 2-stage warning system with audible, visual and vibration alarms ensures a high level of safety.

6) Large selection of carrying systems
Different belt options and shoulder carrying systems ensure high carrying comfort, ideal weight distribution and offer a suitable option for every application.

7) Wide selection of breathing connections
Wide range of breathing connections: Face shields, half and full face masks, bonnets, Helmet headpiece, PAPR suits.

Available in two versions
Available as an e-Flow with Filter box and EN148-1 Round thread connection (9) or as a PAD Box system with sustainable filter pads (8).

For more information, please see our product catalog

Product Catalog

Product Description e-Flow PAPR

Revised Housing (NEW)
The housing of the new e-Flow PRO series has been completely redesigned and is now even more robust thanks to reinforced materials. The hose connection has also been improved for enhanced durability and ease of use.

Software Update (NEW)
The blower is equipped with a powerful and reliable EBM Papst motor, ensuring consistent performance and long service life.

Reliable Energy Source
The e-breathe powered air respiratory system comes standard with a replaceable high-performance lithium-ion battery that provides long operating times and excellent durability. The fast-charging function charges the battery up to 80% in just one hour and fully charges it within three hours.

High-Performance Motor by EBM Papst
The latest software update delivers improved performance and an expanded range of features.

Automatic System Test
The integrated software of the intelligent e-Flow performs an automatic system test every time the device is switched on, ensuring full functionality is verified before each use.

Strong Air flow
Powerful airflow with an adjustable range from 80 to 220 l/min – ensuring positive pressure inside the headpiece even under extreme conditions. Constant air flow monitoring – independent of battery charge status and filter saturation.

Intelligent 2-stage warning system
The electronics continuously monitor all important components and warn the user if the minimum volume flow is not reached, if the filter is saturated or if the battery power is low.
Stage 1 – Warning: acoustic and visual signal
Stage 2 – Alarm: acoustic, visual and mechanical (vibration alarm) signal

Real-time runtime display
Thanks to the communication between the system and the battery, the remaining battery runtime is continuously displayed in real time on the screen, shown in hours and minutes.

Modular Design / Repairability made in Germany
Easy and service-friendly maintenance: fast and simple replacement and repair of spare parts and components. The product is manufactured and the entire service, including maintenance and repair, takes place in Germany to ensure the highest quality standards. It is developed and produced in Germany and certified to German standards.

Compatible breathing connections

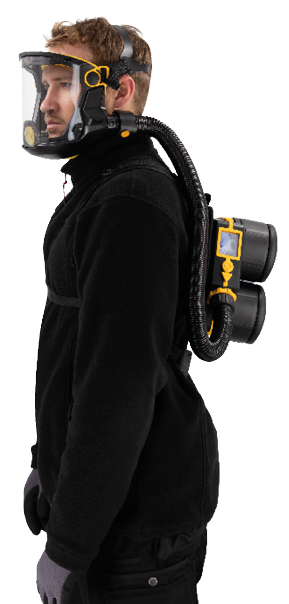

Multimask

UPDATED

Short & Long Hoods

Multi-Hood

Lab Hood

Full Face Mask

Half face mask

NEW

PAPR Suits

Chemical Suits

SPLASH PAPR SUit

NEW

Technical specifications

Country of Production:	Germany
Approvals:	e-breathe e-Flow Hood-System -> CE certified according to EN 12941 (TH3) e-breathe e-Flow Mask System -> CE certified according to EN 12942 (TM2/TM3)
Airflow:	Air flow adjustable in three stages depending on the head section mode: hood system 160 – 180 – 200 l/min full mask system 120 – 140 – 160 l/min \| half mask system 80 – 100 – 120 l/min
Airflow Warning:	< 160 l/min hood system < 120 l/min full mask system \| < 80 l/min half mask system
Battery Warning:	< 15 min remaining time
Battery:	Lithium-Ion Battery: 14,4V / 3,4Ah / 49WH
Operating Time:	Hood system: 12 h I Full mask system: 14 h \| Half mask system: 18 h (Depending on the concentration of pollutants and the air flow setting)
Battery Recharging Time:	Fast charging function 1 hour (80%) \| Full charge 100%: 3 hours
Weight:	approx. 1100g (with battery / without filters / without belt)
Temperature Range:	-10°C to +40°C <70% RH
Alarm System:	optical alarm (Display of the alarm at the color display with corresponding error code.) acoustic alarm (≥ 75 dB ) vibration alarm

Starter-Packs e-Flow Powered Air Respirator (PAPR)

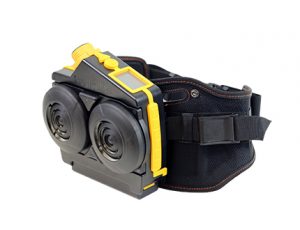

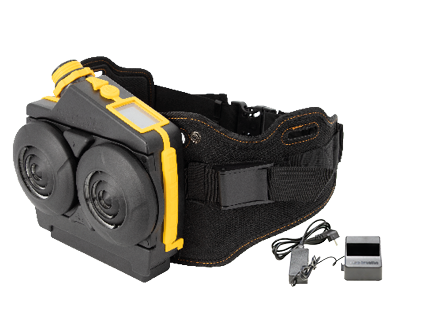

e-breathe e-Flow PAD-Box

Art. No. 322005100

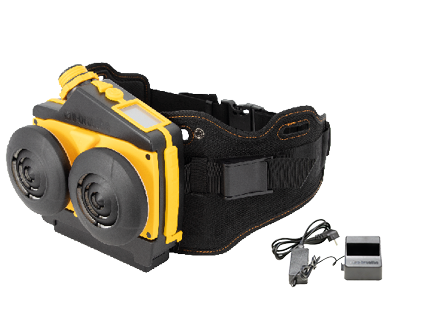

e-breathe e-Flow Filter-Box

Art. No. 322005099

Ready-Packs e-Flow Powered Air Respirator (PAPR)

Ready-Pack e-Flow
Multimask Pro Foam

Art. No. 322005240

Ready-Pack e-Flow
Multimask Pro Mesh

Art. No. 322005250

Ready-Pack e-Flow
Multimask Pro Silicone

Art. No. 322005260

Ready-Pack e-Flow
Short Hood Limited Use

Art. No. 322006100

Ready-Pack e-Flow
Short Hood Premium

Art. No. 322006150

Ready-Pack e-Flow
Long Hood Limited Use

Art. No. 322006200

Ready-Pack e-Flow
Long Hood Premium

Art. No. 322006250

Ready-Pack e-Flow
Lab Hood Limited Use

Art. No. 322005300

Ready-Pack e-Flow
Lab Hood Premium

Art. No. 322005301

Ready-Pack e-Flow
Chemical Hood

Art. No. 322005400

Ready-Pack e-Flow
Multi Hood Limited Use

Art. No. 3220055XX

with Helmet Holder: -00
with Head Holder: -10

Ready-Pack e-Flow
Multi Hood Yellow

Art. No. 3220055XX

with Helmet Holder: -20
with Head Holder: -30

Ready-Pack e-Flow
Multi Hood Premium

Art. No. 3220056XX

with Helmet Holder: -00
with Head Holder: -10

Ready-Pack e-Flow
Multimask Asbestos

Art. No. 322005960

Ready-Pack e-Flow
Full Face Mask

Art. No. 322005910

Accessories & Spare Parts e-breathe e-Flow Filter-Box

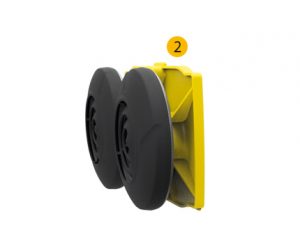

The e-Flow has a modular design and has different filter holders. Thanks to the interchangeable filter holders, different filter holders (PAD box or filter box) can be used with the e-Flow depending on the area of application. The filter mounting plate of the e-breathe e-Flow with filter box has a DIN round thread connection so that filters with a DIN round thread connection can be connected directly to the blower. Depending on the ambient air and requirements, a particle, gas or combination filter can be used.

e-breathe Filter-Box

Art. No. 322-005-002

Cleaning Kit Filter Box

Art. No. 500510048

e-Flow Disposable Device Cover

Art. No. 322005005

Heat Protection Device Cover

Art. No. 223100401

Accessories & Spare Parts e-breathe e-Flow PAD-Box

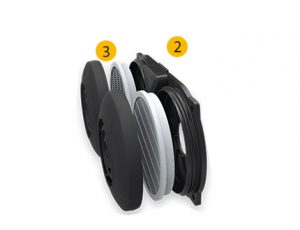

The e-Flow has a modular design and has different filter holders. Thanks to the interchangeable filter holders, different filter holders (PAD box or filter box) can be used with the e-Flow depending on the area of application. In The e-breathe e-Flow with PAD box, the holder for the filter media (ecoPADs) is integrated directly into the housing. The corresponding ecoPAD is inserted directly into the blower and then firmly closed with the corresponding filter covers. This unique concept eliminates the need for a DIN round thread connection, making the entire device flatter and lighter. Depending on the ambient air and requirements, a particle, gas or combination filter can be used.
