e-breathe e-Line Compressed Air Regulating Valve
Self-contained breathing apparatus with continuous breathing air supply
The e-Line compressed air control valve is worn on a belt and, together with an e-breathe hood, mask or suit, forms a compressed air-assisted respiratory protection system with continuous air flow. The treated breathing air from the compressor is fed to the headpiece via the valve and a breathing air hose. The resulting overpressure prevents the ingress of pollutants such as particles, dust, aerosols, gases and vapours.
- Robust Design
Durable housing with smooth surfaces for easy cleaning and quick maintenance access.
- Ergonomic & Flexible
Can be worn on either side of the belt; swivel hose adapter prevents twisting for greater comfort.
- Adjustable Airflow
Individually adjustable airflow from 170–300 l/min at 4–7 bar, controlled via a lockable knob.
- Maximum Safety
Integrated warning whistle (>90 dB) alerts when pressure or airflow drops below safe levels.
- Optional Tool Connection
Enables the use of pneumatic tools or spray guns from the same compressed air supply.
Product Overview
e-breathe e-Line Compressed Air Regulating Valve
Product Overview e-breathe e-Line Compressed Air Regulating Valve
1) Silencer
The silencer installed directly at the air outlet of the e-Line valve keeps the noise level in the head section to a minimum.
2) Compressed Air Adapter
The freely rotating DIN round thread hose connection prevents twisting of the breathing air hose and is compatible with all e-breathe and PM breathing air hoses.
3) Safety Coupling
Two-way safety coupling for quick assembly and safe connection of the CA Regulator Valve CA adapter.
4) Airflow
Adjustable control button to adjust the air flow from 170-300 l/min. The built-in safety mechanism prevents accidental adjustment of the air flow.
5) Design / Material
Robust PA6 housing protects the internal components. The smooth surface makes cleaning easy.
6) Compressed Air Connection
Easy to reach safety plug for quick assembly and disassembly of the compressed air hose. Various breathing air safety plugs available
7) Tool Connection
Optional connection for compressed air tools/paint spray guns, which are also supplied with compressed air.
8) Maintenance
Easy to operate and to maintain compressed air control valve. All external parts can be easily replaced without opening the housing.
9) Warning Whistle
The integrated warning whistle sounds with a loud signal of 90 dB to warn the user when the minimum operating pressure or the minimum air volume is insufficient.
10) Carrying Device
The e-Line regulator valve can be worn on the right or left side of the belt. The belt holder is compatible with all e-breathe belt systems.
10) Adjustable for right and left handed users
The connection side of the compressed air and tool connection can optionally be changed. This makes the e-Line system suitable for right-handed and left-handed users.
For more information, please see our product catalog
Compatible breathing connections
e-breathe e-Line Compressed Air Regulating Valve
Compatible breathing connections e-breathe e-Line Compressed Air Regulating Valve
Multimask
Short & Long Hoods
Multi-Hood
Lab Hood
Half face mask

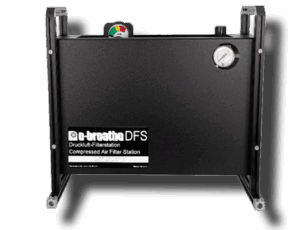

Compatible Compressed Air Filter Station
for e-breathe e-Line
Compatible Compressed Air Filter Station for e-breathe e-Line
The e-Line compressed air regulator valve requires breathable compressed air according to DIN EN 12021 for operation. The e-breathe compressed air filter station for 1-3 users for mobile or stationary use was developed for the preparation of technical compressed air. The Station is available in a Standard Version and in an ATEX Version specially optimized for use in explosive environments.
Technical specifications
e-breathe e-Line Compressed Air Regulating Valvel
Technical specifications e-breathe e-Line Compressed Air Regulating Valvel
| Country of manufacture | Germany | |
| Approvals | CE certified according to EN 14594 (3A / 3B / 4A) | |
| Operating Pressure | 4 – 7 Bar | |
| Airflow (Continuous Flow Rate) | Adjustable on the device: 170 – 300 l/min | |
| Airflow Warning | < 170 l/min / < 3,5 Bar | |
| Warning Signal / Alarm System | > 90 dBA / Acoustic alarm via warning whistle | |
| Noise Level | < 65 dBa | |
| Temperature Range | -10°C to +55°C <70% RH | |
| Weight | 490 g (without belt) | |
| Dimensions | 130 x 160 x 55 mm |
Ordering Information
e-breathe e-Line Compressed Air Regulating Valve
Ordering Information e-breathe e-Line Compressed Air Regulating Valve
Starter-Packs
e-breathe e-Linee-breathe e-Line Compressed Air Regulating Valve
Starter-Packs e-breathe e-Linee-breathe e-Line Compressed Air Regulating Valve
e-breathe e-Line
Art. No. 322007100
e-breathe e-Line Basic
Art. No. 322007000
Ready-Packs
e-breathe e-Line Compressed Air Regulating Valve
Ready-Packs e-breathe e-Line Compressed Air Regulating Valve
Ready-Pack e-Line
Multimask Pro Foam
Art. No. 322007110
Ready-Pack e-Line
Multimask Pro Mesh
Art. No. 322007120
Ready-Pack e-Line
Multimask Pro Silicone
Art. No. 322007130
Ready-Pack e-Line
LabhoodPremium
Art. No. 32207140
Ready-Pack e-Line
Multi-Hood Premium
Art. No. 3220071/-
with Helmet Holder= 50
with Head Holder = 60
Accessory & Spare Parts
e-breathe e-Line Compressed Air Regulating Valve
Accessory & Spare Parts e-breathe e-Line Compressed Air Regulating Valve
CRV Adapter
Art. No. 100063794
Hose adapter with replaceable silencer for e-breathe e-Line.
CRV Silencer
Art. No. 100063990
Replacement silencer for changing. Compatible with DRV adapter.
e-breathe Union Nut
Art. No. 322991005
Replacement union nut with DIN round thread for DRV adapter.
Material: PCABS
Device Cover Limited-Use
Art. No. 116001043
CRV Breathing Air Safety Plug
Art. No. 322007008
CRV Safety Coupling
Art. No. 322007101
CRV Safety Coupling
Art. No. 322007009
CRV Blind Plug
Art. No. 322007011
e-breathe Belt Pro
Art. No. 108062786
textile
Belt Decon
Art. No. 302062996
decontaminable
Comfort Belt Pro V.2 (textile)
Art. No. 322003003
Carrying Devices
Carrying devices such as straps, shoulder straps and back carrying plates can be found here.
Disinfectant
Art. No. 129001000
PM PSA Rapid Disinfectant
Storage Case
Art. No. 119458616
Storage case for storing away respiratory protection equipment.
e-breathe Service Box M
Art. No. 119458610
(40x30x22 cm) Storage case for safe storage of the blower unit and headpiece.
e-breathe Service Box L
Art. No. 119458611
(40x30x33 cm) Storage case for safe storage of the blower unit and headpiece.
