e-breathe Full Face Mask Panarea
Full-face mask for maximum protection against hazardous substances and contaminated air
The Panarea full-face mask is ideal for all applications requiring respiratory protection with a full-face mask. The mask body is made of silicone and offers maximum wearing comfort. The soft, skin-friendly silicone ensures comfortable wearing properties and a long service life.
The curved, anti-fog polycarbonate panoramic visor offers an unrestricted field of vision. A scratch-resistant anti-fog coating is integrated as standard. Thanks to its special fit, one universal size covers all face sizes. The five-point headband system allows for quick donning and ensures a very good seal.
The single-filter mask is equipped with an EN 148-1 standardised RD40 round thread connection. This allows all approved filters with DIN round threads (up to 500 g) to be used, providing a wide selection of different filter types for specific applications.

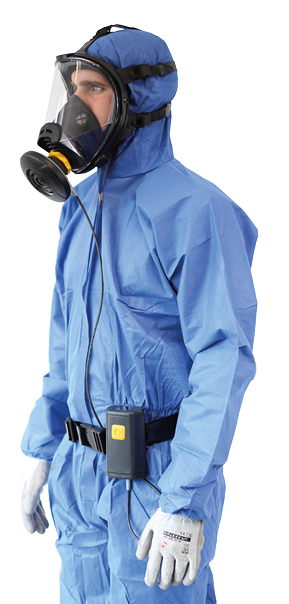

The full-face mask is approved for use with different air sources and can be used both in positive pressure mode with a powered air-purifying respirator (PAPR) and with a compressed air control valve. The air source generates constant positive pressure in the mask and supplies the user with breathable air. This respiratory support extends the permissible wearing time and significantly reduces physical strain.
Product Overview
e-breathe Full Face Mask Panarea
Product Overview e-breathe Full Face Mask Panarea
- Clear view: visually perfect, distortion-free visor with unrestricted field of view (98 %)
- High wearing comfort due to soft and skin-friendly silicone rubber of the full mask
- Low operating costs / low acquisition costs
- Highest full face masks protection class: class 3
- Extension of the maximum wearing time, by respiratory support with an additional air source
- Easy decontamination and cleaning: all components are washable
- Reliable working material: durable and high-quality equipment
Compatible Air Sources
e-breathe Full Face Mask Panarea
Compatible Air Sources e-breathe Full Face Mask Panarea
Technical specifications
e-breathe Full Face Mask Panarea
Technical specifications e-breathe Full Face Mask Panarea
Country of Production | Italy | Germany | Germany | ||||
Approvals | CE certified according to EN 136 | CE certified according to EN 12942 | CE certified according to EN 12942 | ||||
Air source | – | e-breathe e-Flow | e-breathe Smartblower | ||||
Protection Class | Class 3 / 400 | TM3 / 500 | TM3 / 500 | ||||
Airflow | – | 140 l/min | 160 l/min | ||||
Filter- / Hose Connection: | DIN-round thread | DIN-round thread | DIN-round thread | ||||
| Filteranzahl | 1 × Filter | 2 × Filter | 1 × Filter | ||||
Operating temperature | −20 °C / +50 °C < 70 % RH | −10 °C bis +45 °C < 70 % RH | −10 °C bis +40 °C < 70 % RH | ||||
Weight | 700 g | 700 g | 700 g |
For more information, please see our product catalog
Ordering Information
e-breathe Full Face Mask Panarea
Ordering Information e-breathe Full Face Mask Panarea
Starter-Packs
Ready-Packs
e-breathe
Full Face Mask Panarea
Art. No. 701007000
Full Face Mask Panarea Pro
Ready-Pack
Smartblower
Art. No. 322002133
Ready Pack Smartblower Full Face Mask-System with Panarea Pro
Ready-Pack
e-breathe e-Flow
Art. No. 322005900
e-breathe Ready-Pack e-Flow with PM Panarea Pro
Ready-Pack
Smartblower
Art. No. 322007170
Ready-Pack e-breathe e-Line with Panarea Pro
Breathing Air Hoses
e-breathe Full Face Mask Panarea
Breathing Air Hoses e-breathe Full Face Mask Panarea
Breathing Air Hoses -
PU flexible
DIN-RG connection:
Art. No. 302711100
Full-face mask breathing air hose, flexible, made of PU.
Breathing Air Hoses -
PU fixed length
DIN-RG connection:
Art. No. 302711103
Full-face mask breathing air hose, fixed length, made of PU.
Breathing Air Hoses -
EPDM
DIN-RG connection:
Art. No. 302711108
Full-face mask breathing air hose, fixed length, made of EPDM.
Spare Parts & Accessories
e-breathe Full Face Mask Panarea
Spare Parts & Accessories e-breathe Full Face Mask Panarea
Protective Foil
Art. No. 101063094
Panarea Headband
Art. No. 701007001
Panarea Visor
Art. No. 701007002
Panarea exhalation valve
Art. No. 701000004
Panarea inhalation valve
Art. No. 701002006
e-breathe Cleaning Bag
Art. No. 322002108
Disinfectant
Art. No. 129001000
Spray Head
Art. No. 129001001
Smartbelt Backbelt System
Art. No. 322003002
Consists of: Backpack harness, wings, buckle strap, blower belt & storage bag
Smartbelt Backbelt
Art. No. 322003008
Consists of: Backpack harness & wings
Smartbelt Hipbelt
Art. No. 322003009
Consists of: Buckle strap & wings
Y-Connector
Art. No. 322003000
The Y-connector (for Smartbelt) serves as an adapter for use with two filters. To do this, it is simply connected to the motor unit, allowing two filters to be connected to the system.
Blind plug
Art. No. 500510048
For closing the Y-connector if used with a single filter.
Breathing air hose -
EPDM - 80 cm
Art. No. 100063799
(with contra-angle piece)
e-breathe Respiratory protection filter
Respiratory protection filters such as particle, gas or combination filters can be found here.
