e-breathe e-Line

Combined with an e-breathe headpiece or suit, the e-Line CA Regulator is a compressed air assisted breathing system with a continuous airflow. The e-Line Regulator is worn on a belt. The required compressed air is generated by a compressor that delivers the compressed air to a filter station in the case of non-respirable and polluted air.

The compressed air from the high-pressure network/compressor is converted by the filter station into breathing air for externally ventilated breathing protection systems. The filtered air passes the e-Line compressed air regulator valve through a breathing air hose to the user‘s head/suit. The generated overpressure in the head section prevents the ingress of harmful substances. The system protects the user reliably against pollutants such as particles, dust, fumes (aerosols), gases and vapours.

e-breathe e-Line Druckluft-Regelventil

Design:
The e-Line system has a robust and durable construction which reliably protects the control unit inside. Thanks to its smooth surface, the housing is easy to clean. It can be easily opened for quick and easy maintenance.

Compressed Air Hose Adapter:
The union nut on the adapter rotates freely and prevents twisting of the breathing air hose for increased wearing comfort. In addition, an exchangeable silencer is installed in the hose adapter, which limits the noise level to max. 65 dB.

Individual Airflow:
The air flow can be adjusted by pressing the control button. It can be set individually as required by the user from 170 l/min – 280 l/min. This requires an operating pressure of 5-7 bar.

Alarm Device for maximum protection:
The e-Line compressed air control valve has an integrated warning whistle with a loud signal of 90 dB which sounds if the minimum operating pressure or the minimum air flow is not reached.

Various Carrying Devices:
The belt system allows individual adaptation to specific work requirements. The e-Line valve can be mounted on either the right or left side of the belt. Various carrying straps allow a wide range of applications, for example for standard work, welding or decontamination work.

Optional Tool Connection:
The e-Line system can optionally be supplemented with a tool connection to be able to supply compressed air tools or paint spray guns with compressed air. The compressed air and tool connection can be attached either to the left or right and is therefore ideally suited for left- and right-handed users.

Country of Production:Germany
Approvals:CE certified according to EN 14594 (3A / 3B / 4A)
Airflow:adjustable on the device
170 – 280 l/min
Operating Pressure:5 – 7 Bar
Airflow Warning:< 170 l/min / < 3,5 Bar
Volume:< 65 dBa
Weight:490g (without belt)
Temperature Range:-10°C to +40°C <70% RH
Alarm System:> 90 dBa / acoustic alarm via warning whistle

For more information, please see our product catalog

Starter-Packs

e-breathe e-Line Druckluft-Regelventil

e-breathe e-Line

Art. No. 322-007-100

e-breathe e-Line Druckluft-Regelventil

e-breathe e-Line Basic

Art. No. 322-007-000

Ready-Packs

Ready Pack e-Line 1

Ready-Pack e-Line 1

Art. No. 322-007-110

Ready-Pack e-breathe e-Line 1 with Multimask Pro

Ready Pack e-Line 2

Ready-Pack e-Line 2

Art. No. 322-000-1xx

with Multimask size M = 20
with Multimask size M/L = 30

Ready-Pack e-breathe e-Line 2 with Multimask

Ready Pack 3 eLine

Ready-Pack e-Line 3

Art. No. 322-007-140

Ready-Pack e-breathe e-Line 3 with PM Lab Hood AV Premium

Ready-Pack e-Line 4 mit Multi-Hood

Ready-Pack e-Line 4

Art. No. 322-007-1xx

with Helmet Mount = 50
with Head Mount = 60

Ready-Pack e-breathe e-Line with Multi-Hood Premium & Helmet or Premium mount

Ready-Pack 5 e-Line mit PM Panarea Pro

Ready-Pack e-Line 5

Art. No. 322-007-170

Ready-Pack e-breathe e-Line with PM Panarea Pro

Accessory & Spare Parts

e-breathe e-Line Druckluft-Regelventil Schlauchadapter

CRV Adapter

Art. No. 100-063-794

Schalldämpfer für DRV

CRV Silencer

Art. No. 100-063-990

Überwurfmutter

e-breathe Union Nut

Art. No. 322-991-005

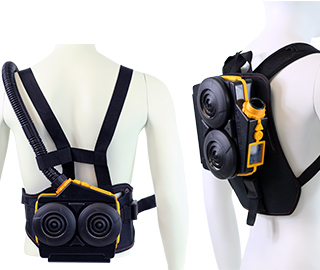

Trageeinrichtungen e-breathe

Carrying Devices

Carrying devices such as straps, shoulder straps and back carrying plates can be found here.

Druckluft Sicherheitsstecker

CRV Breathing Air Safety Plug

Art. No. 322-007-008

Schnellkupplung für DRV

CRV Safety Coupling

Art. No.  322-007-101

Sicherheitskupplung

CRV Safety Coupling

Art. No. 322-007-009

DRV Blindstopfen

CRV Blind Plug

Art. No. 322-007-011

e-breathe Gürtel Pro

e-breathe Belt Pro

Art. No. 108-062-786

e-breathe Belt Pro (textile)

Gurt Dekon, größenverstellbar

Belt Decon

Art. No. 302-062-996

decontaminable

Komfort Gürtel

e-breathe Comfort Belt Pro V.2

Art. No. 322-003-003

e-breathe Comfort Belt Pro V.2 (textile)

Aufbewahrungskoffer für sichere Lagerung der Gebläse-Einheit

Storage Case

Art. No. 119-458-616

Storage case for storing away respiratory protection equipment.

Multimask Desinfektionsmittel

Disinfectant

Art. No. 129-001-000

PM PSA Rapid Disinfectant

Atemschutzzubehör Sprühkopf Basic

Spray Head for Disinfectant

Art. No. 129-001-001

Spray Head for Disinfectant

e-breathe Druckluftfilter-Station DFS 3 & DFS 3WH

e-breathe Compressed Air Filter Station

You can find more information about compressed air filter stations over here.
