e-breathe Smartblower PAPR
THE ALL-IN-ONE POWERED AIR PURIFYING RESPIRATOR
The small and lightweight Smartblower respiratory protection blower system offers maximum flexibility. The system has a modular design and consists of the battery control unit (SVE) and the SVE cable & motor unit. You can use these basic components flexibly or expand them to suit your specific application. The blower is designed for pressurised operation and supplies the connected head section with breathing air. The blower is controlled via the lightweight 350 g SVE unit, which provides a constant airflow of 140 l/min. The Smartblower system offers a wide range of practical functions.
Intelligent control & system monitoring
- Automatic system test at every start-up
- Continuous monitoring of all functions
- Acoustic and visual warning signals, e.g. for:Filter saturation, Decreasing flow rate, Declining battery performance
- Complete usage data recording for service & maintenance
Clear colour display with intuitive operation
- Real-time display of all relevant operating data: Battery-, filter-, blower warning
- Display of the remaining battery time in real-time and the selected air volume.
Powerful battery for the entire work shift
- For uninterrupted work: second SVE can be used as a replacement battery
- Up to 80% charge in 1 hour, fully charged in approx. 3 hours
Product Overview Smartblower PAPR
1) Accessory: Smartbelt
For carefree work. Combined with accessory it can be worn as a back strap.
2) Motor-Unit
The radial motor delivers an air flow rate of 140 l/min.
3) SVE (Battery/Control Unit)
• Works reliably a whole work shift
• Light intelligent li-ion battery
• Weight: 350g
• Complete battery charging after 3h
• IP 67 watertight
• Color Display
5) SVE Cable
• Waterproof connecting cable
• Available in different versions
• Screw connection for a secure hold
6) EN148-1 round thread connection
Cost-reducing thread filter connection with an one filter mode.
7) Accessory: Y-Connector
Combines 2 filters with the Smartblower motor, enabling the air supply and the air consumption to be spread through 2 filters.
Compatible breathing connections
Short & Long Hoods
Multi-Hood
Lab Hood
Half face mask
Full Face Mask
Overview - Smartblower PAPR
Automatic airflow readjustment
The software integrated in the device monitors the airflow to ensure that the user is supplied with the correct flow rate – even when the filter is becoming increasingly full and the battery power is decreasing. If it is not possible to achieve the correct air flow, the system warns the user with a visual and audible alarm.
Versatile concept
There is a growing range of headpieces, particle filters and accessories. This means that the Smartblower system offers you a wide range of options for flexible customisation to your respiratory protection requirements.
Ultra-light weight
With a weight of 435g (motor + SVE), the system is ultra-light. Thanks to its weight of just 85g, the lightweight Smartblower can be operated directly on a full face mask without a breathing tube. The light weight and ergonomic design ensure maximum wearing comfort even during strenuous work and long-term use.
Modular system
All main components have a modular design so that damaged parts can be replaced quickly. This minimises the associated downtimes and costs.
Li-ion battery / exchangeable battery
A lithium-ion battery with a runtime of up to 8 hours is installed in the SVE. A second SVE as an exchangeable battery enables the user to charge and replace the battery without interrupting work. The quick-charge function of the SVE charges the battery up to 80% in one hour and fully in 3 hours.
IP 67 protection class
The SVE can be fully immersed in water without any problems. This also applies to the motor unit, provided it is sealed with decontamination caps.
e-breathe Smartblower Operating Modes
Half/Full Mask Operation:
Single Filter Mode
When operating the Smartblower with a full-face mask, the motor unit is screwed into the threaded connection between the full or half mask and the filter at the front. The lightweight SVE with battery is comfortably worn on the belt. The blower provides breathing assistance – this extends the permissible wearing time and makes the user’s work easier.
- Suitable for all applications requiring respiratory protection with a full-face mask
- Breathing assistance for the user
- Cost-efficient due to single-filter operation and the e-breathe filter system
- Extended wearing time limit thanks to powered air support
|
Technical Details
|
|
|---|---|
|
SVE Mode |
SVE Full Face Mask Operation |
|
Number/Type of Filters |
1x Particle Filter |
|
Battery Runtime |
approx. 6-8 h |
|
Headpiece Type |
Full Face Masks & Half Masks |
|
Certification |
CE Certification to EN 12942 |
Hood Operation:
Single/Dual Filter

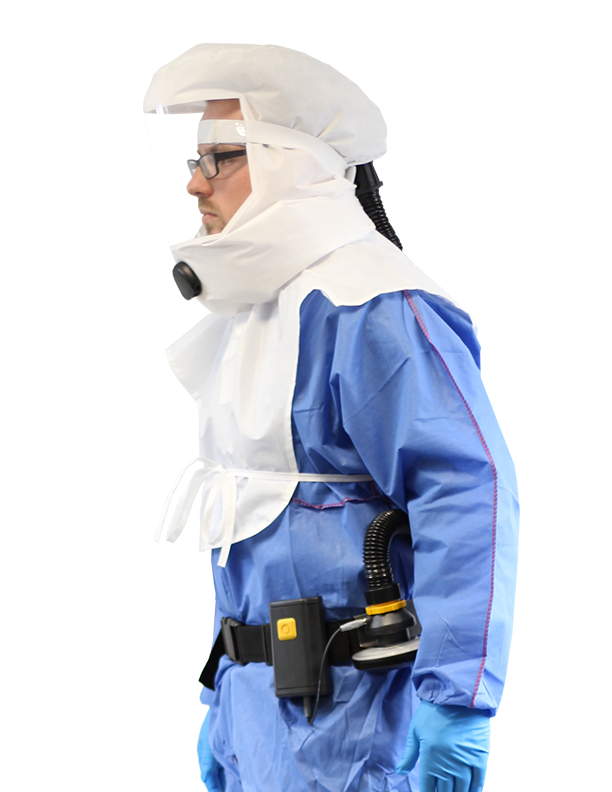

When operating the Smartblower with a hood, the motor unit with the SVE is worn on the belt or Smartbelt. A breathing hose is connected to the motor unit and attached to a hood that is continuously supplied with breathing air. The air supply inflates the hood and creates positive pressure, preventing the ingress of harmful substances.
The blower can be operated with either one or two particle filters, making it particularly cost-efficient and sustainable.
When operated with two filters, the Y-connector is required. The Y-connector is screwed between the motor unit and the particle filters. This allows you to use two particle filters to extend battery life and achieve a higher initial air flow rate. The Y-connector, together with the blower and particle filters, can be worn on the belt or mounted on the Smartbelt back harness system.
|
Technical Details
|
||
|---|---|---|
|
SVE Mode |
SVE Hood Operation |
SVE Hood Operation |
|
Number/Type of Filters |
1x Particle Filter |
2x Particle Filter |
|
Battery Runtime |
approx. 6-8 h |
approx. 4-8 h |
|
Accessories |
– |
Y-Connector |
|
Headpiece Type |
Respiratory Protection Hoods |
Respiratory Protection Hoods |
|
Certification |
CE Certification to EN 12941 |
CE Certification to EN 12941 |
For more information, please see our product catalog
Technical specifications
| Country of Production: | Germany | Germany |
| Approvals: | Smartblower Hood-Mode CE certified according to EN 12941 (TH3)) | Smartblower Full Mask Mode-> CE certified according to EN 12942 (TM3) |
| Airflow: | not adjustable on the device 140 – 160 l/min | not adjustable on the device 140 l/min |
| Airflow Warning: | < 135 l/min | Nein |
| Battery Warning: | < 15 min remaining runtime | < 15 min remaining runtime |
| Battery: | Lithium-Ion Battery: 11,25V / 2,95Ah | Lithium-Ion Battery: 11,25V / 2,95Ah |
| Operating Time: | approx. 6-8 hours | approx. 6-8 hours |
| Battery Recharging Time: | 1 hour = 80% quick charge function 3 hours = 100% | 1 hour = 80% quick charge function 3 hours = 100% |
| SVE: | SVE Hood Mode | SVE Full Mask Mode |
| Temperature Range: | -0°C bis +40°C <70% RH | -0°C bis +40°C <70% RH |
| Weight: | ca. 470g (without belt / without filter) | ca. 470g (without belt / without filter) |
| Alarm System: | Optical alarm (displayed on display) Audible alarm (≥ 75 dB ) | Optical alarm (displayed on display) Audible alarm ( |
e-breathe Smartblower Components in detail
Smartblower motor unit
The Motor Unit is the core component of the Smartblower system – providing active breathing support and increased comfort during demanding tasks. It is easily screwed directly between the half or full-face mask and the filter via the mask’s thread connection.
The lightweight Battery/Control Unit (SVE) is worn comfortably on the hip belt, while the Motor Unit ensures a steady airflow, reducing breathing effort and extending working time.
Key Benefits:
Ideal for all applications requiring full-face mask protection
Provides breathing assistance and reduces user fatigue
Cost-efficient: uses a single-filter setup with the e-breathe filter system
Enhances comfort and productivity for long work periods
Smartblower SVE (Control and Supply Unit)
The SVE is a 350 g lightweight control and power unit that manages and monitors the Smartblower. It performs an automatic system test at every start-up, stores usage data for service, and features an intuitive color display with visual and acoustic alerts for filter, airflow, and battery status.
Powered by an integrated Li-ion battery (11.25 V / 2.95 Ah), the SVE runs for a full work shift and supports fast charging — 80 % in 1 hour, 100 % in 3 hours. A second SVE can serve as a replacement battery for continuous operation.
Status
display
Display of real-time battery life and the set air flow in the respective mode
Battery, blower warning
Warning the user if the remaining service life, volume flow or a motor fault is exceeded.
System
information
Display of operating hours, serial number, battery charge cycles and next service date
Starter-Packs
e-breathe Smartblower One Filter Mode
Article Nr. 322002100
e-breathe Smartblower Two Filter Mode
Article Nr. 322002201
e-breathe Smartblower Full Face Mask Mode
Article Nr. 322002200
Accessory & Spare Parts
e-breathe Motor
Article No. 322092102
SVE
Article No. 322092103
e-breathe Charger
Article No. 322002101
SVE Spiral cable 2.0 DV
Article No. 322002137
New, improved spiral connection cable with double screw connection for the motor unit and the SVE. The small union nut is screwed onto the motor unit and the large union nut onto the SVE.
Cleaning/Storage kit
Article No. 500510046
Decontamination caps for the motor unit. Protects the motor unit from washing water during cleaning.
Y-Connector
Article No. 322003001
The Y-connector (for the belt clip) serves as an adapter for use with two filters. To do this, simply connect it to the motor unit, allowing two filters to be connected to the system.
Y-Connector
Article No. 322003000
The Y-connector (for Smartbelt) serves as an adapter for use with two filters. To do this, it is simply connected to the motor unit, allowing two filters to be connected to the system.
Y-Connector
Article No. 322003000
The Y-connector (for Smartbelt) serves as an adapter for use with two filters. To do this, it is simply connected to the motor unit, allowing two filters to be connected to the system.
Smartblower Belt
Article No. 322002105
Size adjustable with plastic buckle.
Strap: nylon
Belt Decon
Article No. 302062996
Size-adjustable, decontaminable belt with plastic buckle. Easy to clean.
e-breathe Smartbelt
The Smartbelt is a back carrying system that adapts perfectly to the requirements of a wide range of applications. The bayonet lock on the Smartbelt allows the Y-connector and SVE to be attached quickly and securely.
You can find the Smartbelt here.
BeltClip
Article No. 322004021
The belt clip allows the blower to be positioned anywhere on the belt. This provides a high degree of freedom of movement and comfort. The holder can be easily removed from the belt for cleaning.
BeltClip
Article No. 322004021
The belt clip allows the blower to be positioned anywhere on the belt. This provides a high degree of freedom of movement and comfort. The holder can be easily removed from the belt for cleaning.
e-breathe Service Box M
Article No. 119458610
Storage case for safe storage of the blower unit and head section.
Storage Case
Article No. 119458616
Plastic storage case for safe storage of the blower unit.
Device Cover Limited-Use
Article No. 116001042
e-breathe Wall mount
Article No. 322002136
Wall mount for the e-breathe e-Flow charging cradle and Smartblower charging cradle.
Material: stainless steel
e-breathe Wall mount
Article No. 322002136
Wall mount for the e-breathe e-Flow charging cradle and Smartblower charging cradle.
Material: stainless steel
Disinfectant
Article No. 129001000
PM PSA Rapid Disinfectant
e-breathe Prefilter
Article No. 302052691
