e-breathe Splash SUIT Overpressure protective suit
The new e-breathe Splash 2, made from a new and improved material, offers greater freedom of movement and has a larger panoramic visor than its predecessor. It is a one-piece positive pressure breathing suit that offers maximum protection (type 3) against solid and liquid chemicals as well as radioactive contamination. The suit is used in combination with an approved air source (e-breathe e-flow respiratory protection blower).
- Made in Germany
- High chemical and mechanical resistance
- Reinforced arms and legs for the toughest working conditions.
- large anti-fog panoramic visor with overhead visor
- Emergency supply hose connection
The material of the e-breathe Splash 2 consists of high-quality elastomer fabric with a special film laminate. The resulting resistance and mechanical resilience make the suit suitable for a wide range of applications in all areas.
The PAPR is worn inside the suit (only the filters are outside) to avoid contamination of the blower. It supplies a constant (adjustable) fresh air flow of 160-200 liters per minute into the air duct of the integrated hood via the breathing air hose. This reliably supplies the user with sufficient breathable air. The exhaled air is led out of the suit via four exhaust valves.
The suit is equipped with a large visor in the eye and head area offering a wide field of vision. The suit has firmly sewn and welded safety boots. The conical sleeve enables a liquid-tight connection between the glove and the suit, either by taping it with chemical-resistant tape or by using the e-breathe glove adapter system or by installing a fixed glove coupling system.
CERTIFIED ACCORDING TO EN STANDARDS:
• EN 12941: TH3 with blower filter unit
• EN 14594: 3B with compressed air control valve
• EN 14605: Type 3 liquid-tight protective suits
• EN 14605: Type 4 spray-tight protective suits
• EN 13982: Type 5 particle-tight protective suits
• EN 1073-2: protection against solid radioactive particles
• EN 14126: Type 3B protection against infectious agents
• EN 13688: Protective clothing General requirements
For more information, please see our product catalog
Advantages of the e-breathe e-Flow PAPR
- Equipped with DIN round thread connection for respiratory protection filters
- Automatic system test when switching on for maximum safety
- Intelligent 2-stage warning system acoustic, visual & vibration)
- Reliable replaceable lithium-ion battery with quick-charge function (80% in 1 hour, full in 3 hours)
- Real-time display of battery life, volume flow setting and filter status on the display
- Robust Design, IP65 Protection, EBM Papst motor
- Approvals: EN 12941 TH3, EN 12942 TM3, EN 138 Class B
- Powerful, adjustable air flow (160-200 l/min) with constant monitoring
- Modular & easy to maintain - simple filter and component replacement
- Robust design with IP65 protection class
- High wearing comfort thanks to ergonomic design, quiet operation and large selection of carrying systems
- Made in Germany - development, production & service
- Coming soon: Mobile app for monitoring, headboard LED with warnings, 10-year long-term battery
Functions in detail
Optimal Design
The generously cut hood offers sufficient space for wearing helmets or communication systems. The generously cut crotch area ensures optimal freedom of movement and high wearing comfort.

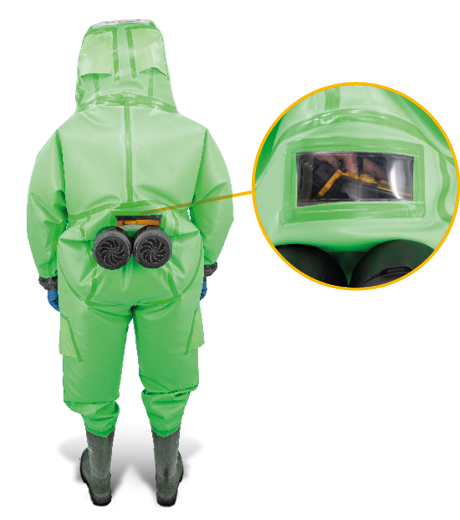

- Large display window for PAPR
- Front entry with flexible, liquid-proof zip
- Reinforced arms and legs for the toughest working condition
- The suit is made with sewn-on and welded safety boots
- Four valves for pressure regulation and CO₂ reduction with additional splash cover

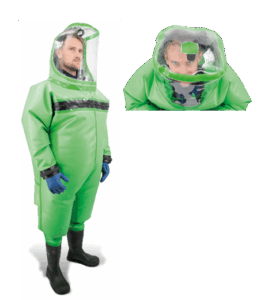

Roof Visor
The large anti-fog panoramic visor gives the wearer a particularly wide and unrestricted field of vision. An additional visor in the upper head area ensures optimum light utilisation inside the suit. This not only improves general visibility, but also significantly increases visibility when working in a crouched position or when crawling.

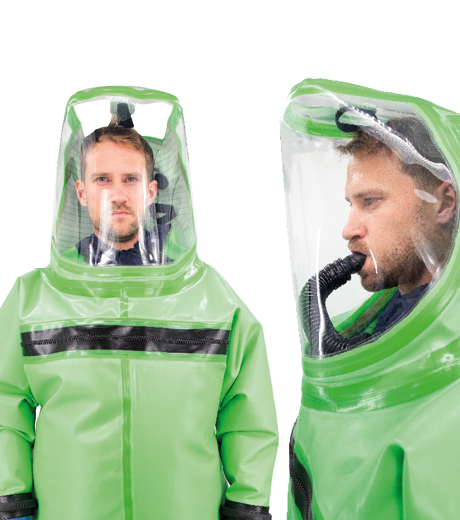

Emergency Function with Emergency Breathing Hose
In the event of a blower failure or if the hazardous area cannot be exited in time, the wearer can use the front-mounted breathing hose with mouthpiece to manually inhale filtered air and safely leave the danger zone.
Various Glove Options
The suit can optionally be equipped with a permanently installed glove coupling system (Bayonet Glove Lock System) or used with the e-breathe glove adapter system. Both glove coupling systems allow the use of a wide variety of gloves. Thanks to the adapter, any glove can be securely connected to the suit to provide liquid-tight protection.
e-breathe Splash Inside
Article no. 3220081xx Gr.S – XXL
Breathing Hoses
Breathing Hoses fixed length
Art. No. 322-011-109
e-breathe Click-Connection
Breathing Hoses flexible
Art. No. 322-001-109
e-breathe Click-Connection
Breathing Hoses flexible
Art. No. 322-004-055
e-breathe ESA-Connection
Breathing Hoses flexible
Art. No. 302-001-111
e-breathe Inside-Connection
Breathing Hoses fixed length
Art. No. 302-001-111
e-breathe Inside-Connection
Accessory & Spare Parts
Adapter Emergency Ventilation
Art. No. 322004051

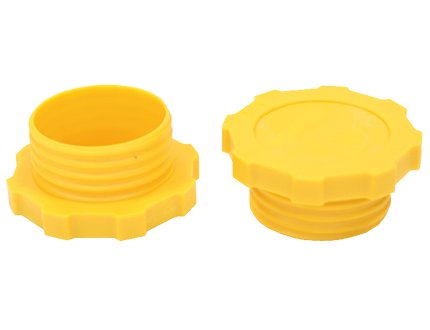

ESA Sealing Plug
Art. No. 322004052
ESA Adapter
Art. No. 322004053

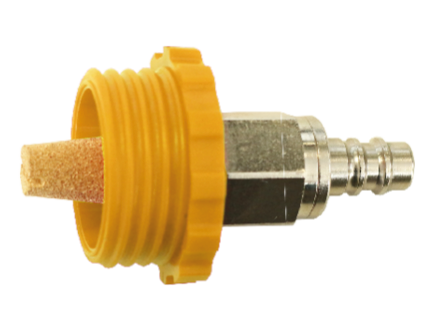

ESA Emergency CA Adapter
Art. No. 322004058
ESA Mouthpiece
Art. No. 322004054
GSA Adapter
Art. No. 116010806
Exhalation Valve Closure Caps
Art. No. 230103010
Protective Boots
Protective Gloves
Undergarment
Art. No. 70001260x
Size M – XL
Moisture-absorbing undersuits for more comfort when working with protective suits.
