e-breathe e-breathe FDS Pro
Self-contained breathing apparatus for work in silos, containers and confined spaces
The e-breathe FDS PRO fresh air pressure hose device is a self-contained breathing apparatus for use in contaminated or oxygen-deficient work areas where conventional filter breathing protection or a compressed air supply is not possible. Typical areas of application are silos, shafts or pit facilities.
The required breathing air is drawn in from a pollutant-free area using the e-breathe e-Flow respiratory protection blower and safely conveyed to the breathing connection via a fresh air hose. The blower, which is positioned outside the danger zone, feeds the breathing air into the full-face mask at a slight overpressure, thus reliably preventing the ingress of pollutants.
The fan-assisted air supply makes breathing noticeably easier, reduces physical strain and ensures a constant, safe supply of breathable air – even during longer periods of use.
Product Overview
e-breathe FDS PRO
Product Overview e-breathe FDS PRO
1) Full Face Mask with en148-1 round thread connection
Different full masks are available according to the user‘s requirements.
2) Breathing Air Hose
Breathing air hose with round thread connection according to EN148-1 at both ends for full-face masks with round thread connection. Depending on the area of application, the breathing air hose can be connected directly to the blower filter unit. Various hose covers are optionally available to protect the hose.
3) Pressure Relief Valve
A pressure relief valve is attached to the blower to ensure a constant airflow to the carrier.
4) Belt unit
Leather belt with improved and free rotating quick coupling from air supply hose to breathing air hose. Optional accessories: fabric belt and decon belt.
5) Air Supply Hose
The robust and very flexible plastic spiral hose is available in four different lengths (10, 15, 20, 30 or 40 m).
6) PAPR
Operated by the powerful „e-breathe e-Flow“ respiratory protection blower with two e-breathe P3 R / PSL particle filters. With additional accessories (belt & breathing hose), the blower can also be used as a filter device for stall, plant protection or disinfection work.
7) Ground Anchor
Robust ground anchor for safe fixation of the blower in a safe area.
For more information, please see our product catalog
Product Description
e-breathe FDS PRO
Product Description e-breathe FDS PRO
Explanation and area of application of fresh air hose devices
Fresh Air Hose Devices are self-contained breathing apparatuses and are predominantly used in contaminated or low-oxygen working areas where the use of normal filter respiratory protection is not possible or where a supply of breathing air via compressed air cannot be established.
An example is in pits or silos due to contamination and/or low oxygen content. For these areas, fresh air hose devices are used, which can be divided into fresh air suction hose devices and fresh air pressure hose devices. Here, the required breathing air from an area outside the contaminated ambient atmosphere is conducted via supply hoses to the breathing connection.
Difference between a fresh air suction hose device and a fresh air pressure hose device
Fresh Air Suction Hose Devices
In fresh air suction hose units, the required breathing air is sucked through a hose by the lung force of the unit carrier. This creates a negative pressure in the entire system, into which pollutants can enter at possible leaks.
Fresh Air Pressure Hose Devices
Fresh air pressure hose devices differ essentially from suction hose devices by the fact that the breathing air is supplied to the device under slight overpressure using a blower. This ensures a slight overpressure in the hose and in the downstream device system, which virtually excludes the penetration of pollutants at possible leaks. .
The e-breathe fresh air pressure hose device supports the breathing of the wearer using a powered air respiratory and thereby relieves the wearer.
The PAPR is positioned and fixed at the end of the hose in an area free of respiratory toxins. The blower leads the breathable air via the connected breathing tube into the full mask of the wearer. This ensures that the full face mask is constantly supplied with an overpressure of breathable air.
Multifunctional application possibilities of the FDS system
In areas of application where filtering respiratory protection can be used, it is also possible to use only the full-face mask with a respiratory protection filter as an alternative. For this purpose, the filter is screwed directly into the full-face mask. Alternatively, the full-face mask can be used with the enclosed e-Flow as a blower filter system. In this case, the breathing air hose is used to connect the blower directly to the full-face mask. With just one system, the user can thus switch between an environment-independent isolation device or an environment-dependent filtering respirator, depending on the area of application.
Compatible breathing connections
e-breathe FDS PRO
Compatible breathing connections e-breathe FDS PRO
Technical Specifications
e-breathe FDS PRO
Technical Specifications e-breathe FDS PRO
| Approvals: (CE certified according to) | – e-breathe Supplied AIr Respirator (FDS: EN 138 Class 2 – PAPR: EN 12941 / EN 12942 – Particlefilter: EN 12941 / EN 12942 / EN 143 P3 R / PSL – Full Face Mask: EN 136 Class 3 / EN 12942 TM3 | |
| Protection Class / VgdW | Class 2 / 1000 | |
| Air Capacity (automatic readjustment) | Adjustable on the device in three stages: 120 – 140 – 160 l/min Full Mask System | |
| Airflow Warning | < 120 l/min Full Mask System | |
| Battery Warning | < 15 min remaining runtime | |
| Battery | Lithium-Ion Battery: 14,4V / 3,4Ah / 49WH | |
| Operating Time | approx. 6 to 10 hours (Depends on the concentration of pollutants and the adjusted airflow.) | |
| Battery Recharging Time | 3 hours (quick charge function enables rapid charging: 1 hours for 80%) | |
| Temperature Range | −10 °C bis +40 °C / < 70 % RH | |
| Weight | approx. 1100g (with battery / without filters / without belt) | |
| Alarm System | – optical alarm (Display of the alarm at the color display with corresponding error code.) – acoustic alarm (≥ 75 dB ) – vibration alarm |
Ordering Information
e-breathe FDS PRO
Ordering Information e-breathe FDS PRO
Starter-Packs
e-breathe FDS PRO
Starter-Packs e-breathe FDS PRO
e-breathe FDS PAD-System
Art. No. 322011001
e-breathe FDS Filter-System
Art. No. 322011002
Accessories & Spare Parts
e-breathe FDS PRO
Accessories & Spare Parts e-breathe FDS PRO
e-Flow Battery V. 3.0
Art. No. 322002236
Replaceable Li-ion battery (14.4 V / 3.4 Ah / 49 WH) for the e-Flow blower unit. The battery can be replaced using a simple click-lock system.
e-Flow Charging Station
Art. No. 322005003
Charging station for the e-Flow battery. Charges the battery to 80% within one hour and fully charges it in four hours.
e-breathe Particle filter P3 R / PSL (Unencapsulated)
Art. No. 322002109
e-breathe ecoPAD P3 R / PSL
Art. No. 322002110
e-breathe FDS Pressure Relief Valve
Art. No. 900014815
The pressure relief valve is screwed between the breathing apparatus blower and the suction hose.
e-breathe Belt Pro (textile)
Art. No. 108062786
Adjustable fabric belt for a hose and belt unit.
e-breathe Belt Pro (textile) - with metal buckle T9
Art. No. 108062787
Adjustable fabric belt with metal buckle for a hose and belt unit.
e-breathe FDS ground anchor
Art. No. 154014901
Replacement ground anchor for mounting on suction hose for secure attachment of the respiratory protection blower.
e-breathe Service Box M
Art. No. 119458610
(40x30x22 cm) Storage case for safe storage of the blower unit and headpiece.
Storage Case
Art. No. 119458616
Storage case for full-face mask and breathing apparatus blower.
e-breathe FDS Storage Box + Lid for the entire FDS unit incl. suction hose
Art. No. 117000200
Disinfectant
Art. No. 129001000
PM PSA Rapid Disinfectant
e-breathe Cleaning Bag Pro V2.0
Art. No. 322092108
(Wash bag for full face masks and Multimask)

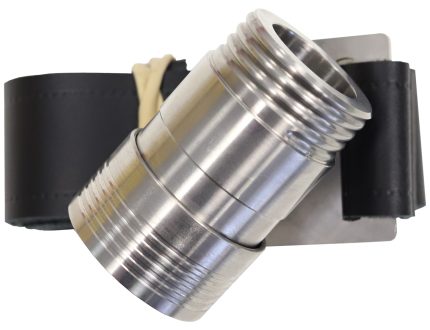

e-breathe FDS PRO belt unit, stainless steel
Art. No. 322002232

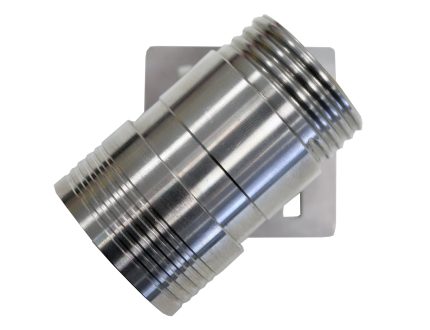

e-breathe FDS PRO quick release coupling
Art. No. 322002231
PM Full Face Mask Panarea Pro
Art. No. 701007000
Breathing Air Hose RT
Art. No. 302711100
e-breathe breathing air hose RT
Material: PU – flexible
Breathing Air Hose RT
Art. No. 302711103
e-breathe breathing air hose RT
Material: PU – fixed length
Breathing Air Hose RT
Art. No. 302711108
e-breathe breathing air hose RT
Material: EPDM
Protection Cover
Art. No. 116001041
Protection cover for hoses, limited-use
compatible with all PM & e-breathe breathing air hoses
Protective cover for breathing air tube - reusable
Art. No. 500700062
FSD Safety harness
Art. No. 140255902
FSD Safety harness with snap hook
Art. No. 140255920 = 20 m
Art. No. 140255921 = 40 m
e-breathe FDS V.1.1 Suction hose
Art. No. 3020110xx
10 m = 10 30 m = 30
15 m = 15 40 m = 40
20 m = 20
e-breathe FDS suction hose including coupling and ground anchor. The robust and highly flexible plastic spiral hose is available in four different lengths (10, 20, 30 or 40 m).
