e-breathe Compressed Air Filter Station

The e-breathe compressed air filter station was developed for the preparation of technical compressed air. The high performance filters installed in the respective stations separate solid particles, aerosols, oil vapours and odours from the compressed air flowing through and remove these. Depending on the application, a 2-stage or 3-stage filter system is used.

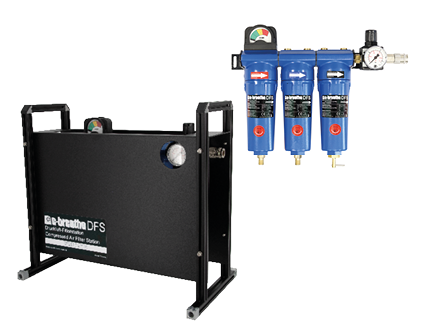

e-breathe DFS 3 & DFS 3WH

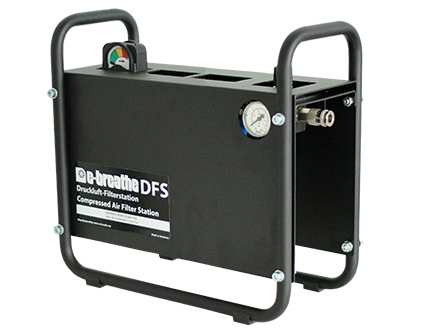

Consisting of 3 Filter elements (M / S / CA), Pressure Regulator with Pressure Gauge, Differential Pressure Gauge, integrated Wall Mount and one output for one user (Optionally expandable to up to 3 users). In addition, the station has a robust housing to protect the filter elements and ensure a mobile operation.

The station can be wall-mounted with a housing. Alternatively, the filter elements can be removed from the housing and mounted on the wall. Thus a WH3 station can be converted into a mobile filter station by installing it into a housing.

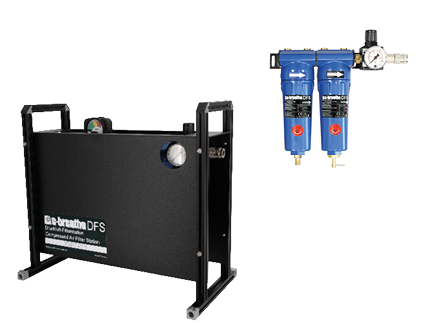

e-breathe DFS 2 & DFS 2WH

Consisting of 2 Filter Elements (S / CA), Pressure Regulator with Manometer, integrated Wall Mount and one output for one user (Optionally expandable to up to 3 users). In addition, the station has a robust housing to protect the filter elements
and ensure a mobile operation.

The station can be wall-mounted with a housing. Alternatively, the filter elements can be removed from the housing and mounted on the wall. Thus a WH2 station can be converted into a mobile filter station by installing it into a housing. In addition, the e-breathe DFS 2 / 2WH can be upgraded to a DFS 3 / 3WH with an additional filter if the operating conditions change.

Description

Filter Function:
The M* / S* filter elements separate solids by impact and the inertia effect. Oil and water aerosols are removed by the coalescence effect. Due to the gravity effect, filtered liquid particles are collected in the lower filter container and are automatically discharged from there. The filter element CA* adsorbs oil vapours and odours which accumulate in the activated carbon.

*M = Microfilter, S = Submicrofilter & CA = Activated Carbon Filter

Product Characteristics:
• Transformation into breathable air
• Filtering of aerosols, solid particles, water, oil vapours and odours
• High-quality filter housing made of aluminium
• Quick and easy filter change without tools
• Low differential pressure of the filter elements saves energy costs
• Differential pressure indicator indicates economical filter replacement
• Maximum air output 1000 l/min / Maximum operating pressure 16 bar ü
• For up to 3 users
• Available as a stationary version for wall mounting
• Available as mobile version with housing
• Compatible with all compressed air regulator valves according to EN 14593 / EN 14594

Approvals:
• The quality of the processed and filtered compressed air complies with ISO 8573-1: Class 1.
• The compressed air filters are tested according to EN ISO 12500.
• The leak test was 100% fulfilled for every compressed air filter.

Technical Specifications
Country of production: Germany
Approval of filter performance: EN ISO 12500 / ISO 8753-1
Inlet pressure: max. 16 Bar ü
Outlet pressure:

max. 10 Bar with compressed air regulator according to EN14594

(*observe manufacturer‘s instructions.)

Maximum air volume / flow rate: 1000 l/min
Inlet thread: Rp 3/8“ internal thread
Outlet thread / connection: Rp 3/8“ internal thread / safety coupling 95KS
Operating temperature: 1,5 – 100 C°
Material: Filter housing: aluminium / Cover: steel
Weight DFS 3 / WH3:
Weight DFS 2 / WH2:
12,4 kg / 5,0 kg
9,0 kg / 3,7 kg
Dimensions DFS 3 / WH3:
Dimensions DFS 2 / WH2:
40 x 44 x 20 cm / 30 x 34 x 10 cm (height x width x depth)
40 x 44 x 20 cm / 30 x 25 x 10 cm

Starter-Packs

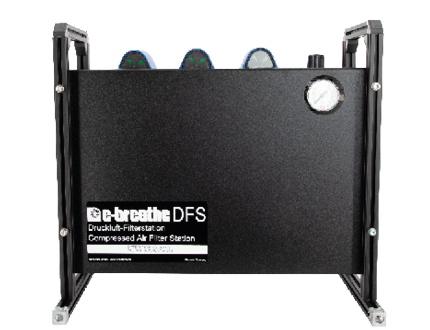

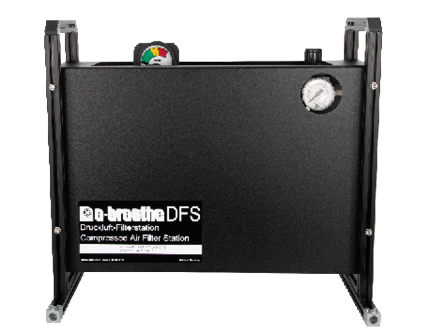

e-breathe DFS 3 Pro

e-breathe Compressed Air Filter Station 3 PRO V.1

Mobile Version
Art. No. 322008301

e-breathe DFS 3 WH Pro

e-breathe Compressed Air Filter Station 3 WH Pro

Stationary Version
Art. No. 322008300

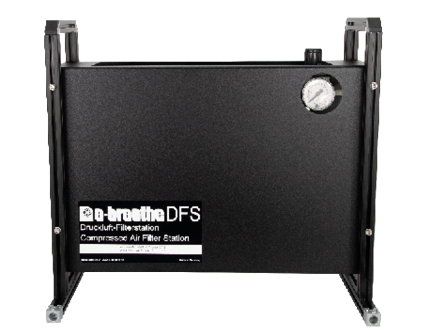

e-breathe DFS 2 Pro

e-breathe Compressed Air Filter Station 2 PRO V.1

Mobile Version
Art. No. 322008201

e-breathe DFS 2 WH Pro

e-breathe Compressed Air Filter Station 2 WH Pro

Stationary Version
Art. No. 322008200

Spare Parts & Accessories

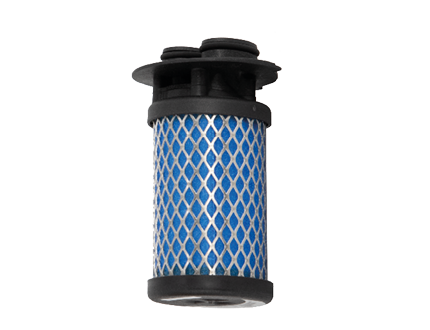

DFS Particle filter cartridge S

DFS Particle filter cartridge S PRO
(compatible with e-breathe compressed air filter station PRO)
Art. No. 322093701

DFS Particle filter cartridge S
(compatible with e-breathe compressed air filter station)
Art. No. 132093701

DFS Particle filter cartridge M

DFS Particle filter cartridge M PRO
(compatible with e-breathe compressed air filter station PRO)
Art. No. 322093711

DFS Particle filter cartridge M
(compatible with e-breathe compressed air filter station)
Art. No. 132093711

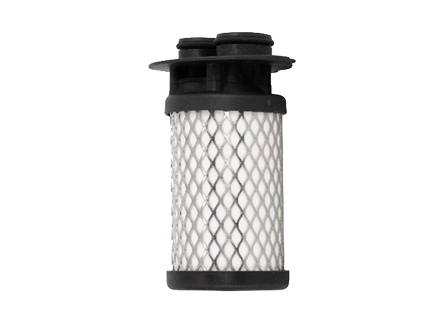

DFS activated carbon filter cartridge CA

DFS activated carbon filter cartridge CA PRO
(compatible with e-breathe compressed air filter station PRO)
Art. No. 322093700

DFS activated carbon filter cartridge CA
(compatible with e-breathe compressed air filter station)
Art. No. 132093700

DFS Differential Pressure Indicator

e-breathe DFS Differential Pressure Indicator
(Compatible only with e-breathe DFS particle filters S/M)
Art. No. 132005008

e-breathe DFS Differential Pressure Indicator PRO
(Compatible only with e-breathe DFS particle filters S/M PRO)
Art. No. 132005016

DFS Manometer

Art. Nr. 148001220

DFS Pressure Regulator

Art. No. 148001210

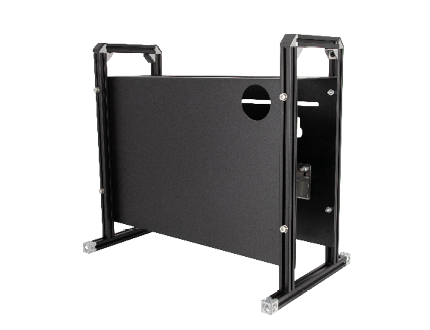

DFS Filter Station Housing

e-breathe DFS Filter Station Housing V.1

Art. No. 148001210

Compressed Air Hoses

Compressed Air Hoses can be found on the separate page.

DFS Y-Connector2

Art. No. 322008004

DFS Y-Connector 3

Art. No. 322008002

DFS Breathing Air Safety Coupling

e-breathe DFS Breathing Air Safety Coupling (1/4 AG).

Art. No. 115001005

DFS Breathing Air Safety Plug

e-breathe DFS Breathing Air Safety Plug (3/8 AG).

Art. No. on request

DFS Blind Plug

e-breathe DFS Blind Plug (3/8 AG / for air inlet and air outlet)

Art. No. 114802304
